Retrofit UV for
Sheet Feds

350+ Installations Mercury UV System Add Value to Your Print

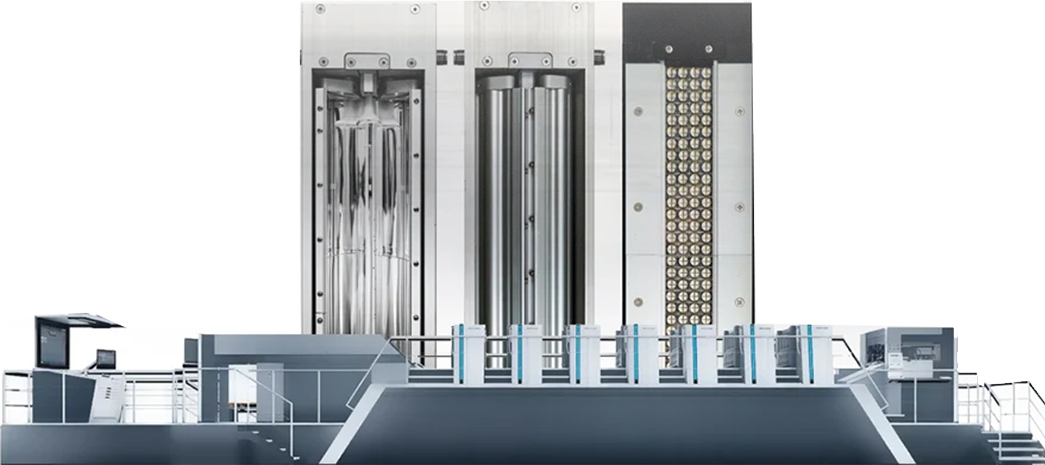

M Cure retrofit UV system on a sheetfed press
About M-Cure Benefits & Features Technology & Core Components Plan Your configuration
Add Value to Your Print

Mercury and LED UV System

Heidelberg, KBA, Komori, Mitsubishi
M Cure Mercury and LED UV system on a sheetfed press

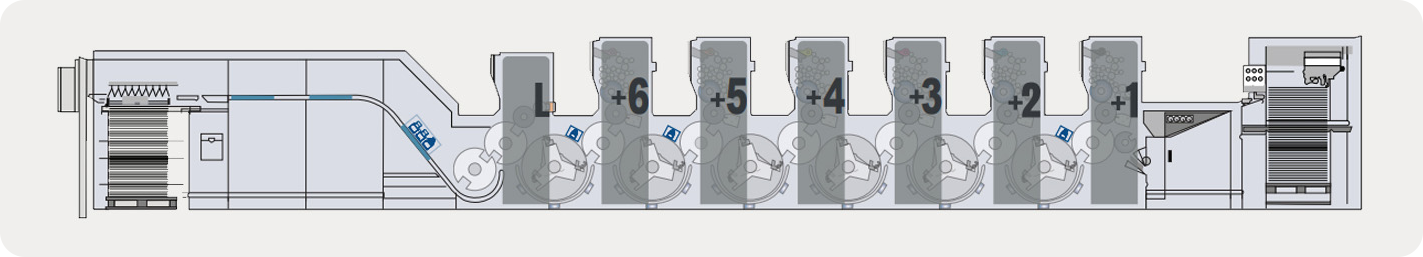

Press configuration diagram showing M Cure positions

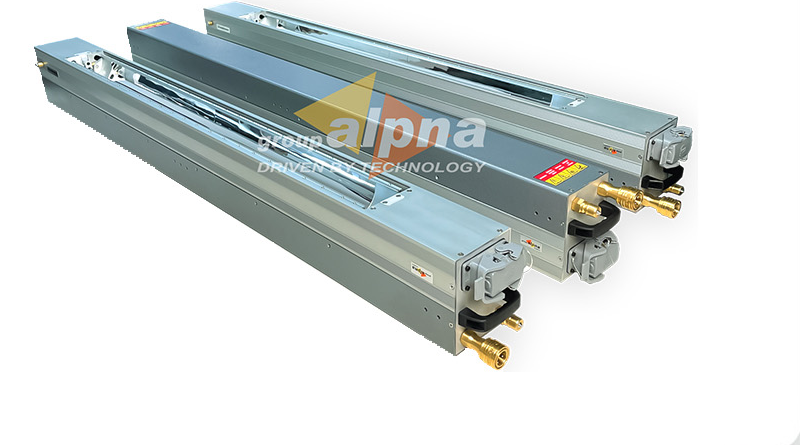

M Cure UV cassette construction

Tech @ Work

Cassette Design

UV Cassette is a compact curing unit that uses ultraviolet (UV) light technology to instantly dry or cure inks, coatings, and adhesives. It is designed for seamless integration into high-speed industrial systems, ensuring consistent and efficient performance.

  • Full Curing Wideness even for Cramped fitments
  • High-Intensity UV Output
  • Integrated Cooling System
  • Compact Modular Design
  • Easy Integration
  • Durable Metal Housing
  • High-Speed performance
  • Thermal Stability System
  • Energy Efficient Performance
  • Made with Non Corrosive part
  • Designed to withstand Extreme Tempreture and Conditions

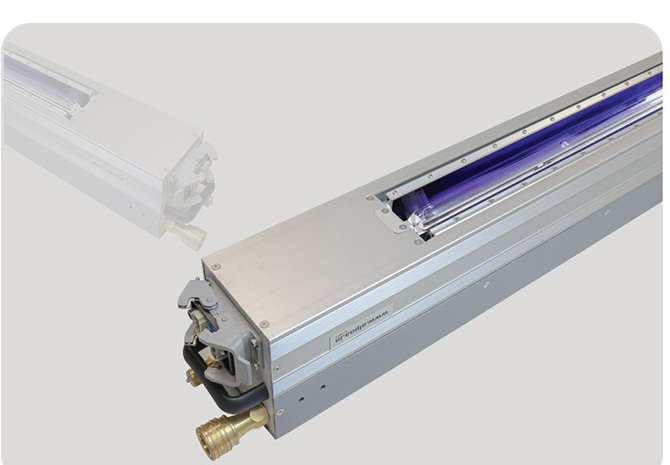

M Cure UV cassette detail
LCURE new generation LED UV system
Highly Durable LED System
Extremely Compact and Robust Design
Water-Cooled System
Advanced Optics for Deep Curing
Energy-Efficient Operation
Intelligent Power Pack
Retrofit Compatibility

Retrofit UV Systems

M Cure is designed for easy, seamless integration with major sheetfed offset presses including Heidelberg, Komori, Roland, KBA, RMGT, and more.

Typical Heidelberg CD102 retrofit

Typical Heidelberg CD102 Retrofit

  • High Quality Cassettes
  • Full- proof Safety Features
  • Prompt and High Quality Service Support
  • Time Tested And Proven Product With 350+ Installation Pan India And Abroad
  • Seamless Integration with the Press. Advanced Option Like Cool UV, LED UV, Hot Swap Technology, Long Legacy of Installation Across India
  • Skilled and Trained team of Engineers For Seamless Integration Into The Press Delivering High Quality Jobs And More Productivity
Optics & Thermal Management

Optics

Precision reflection and heat filtering technology.

M Cure UV reflectors and optics
  • Optics are very critical part of UV System
  • High Reflectivity of UV Radition
  • Filters IR heat away from Substrate
  • Energy saving due to Maximised use of UV Radition
  • Carefully designed Reflectors that Spread and Focus UV rays
    On the Substrate for Deep and complete Curing
Connectivity & Hardware

Top Quality Quick Connectors for Water / Air / Eletricals

Brass quick connectors for water and air
Industrial electrical plug connectors

M Cure

Equipped with Alpna’s time tested UV Curing System

M Cure UV curing system components
Fast Connection
Shuttered
User Friendly
High Quality
After Sales Support
Energy Efficient
Water Cooled

Top Quality Parts Sourced From Global Leaders

Schneider Electric, Harting, Rittal, EPS, Nitto, SMC, Unilam
Energy Cube & Power Control

Energy Cube

The Energy Cube encases essential electrical components procured from leading global brands such as Rittal, Eldon, and others. It provides a protected, organized environment for maximum operating reliability.

M Cure Energy Cube
  • Trusted Components: Sourced from top-tier international suppliers.
  • Thermal Protection: Built-in heat management to protect internal circuitry.
  • Heavy-Duty Build: Galvanized Iron (GI) + Powder Coated enclosure for extreme durability.
  • High Efficiency Operation: Optimized layout for minimum power loss.
  • Touchscreen Interface: Intuitive monitoring and machine control.
  • Data Logging System: Tracks performance metrics and operational history.
  • IP 55 Protection: Sealed against dust, moisture, and industrial environments.
Energy Cube interior with power control components
Electronic Power Supply

Intelligent Power Supply Units

Precision power control imported directly from Italy.

Alpna utilizes heavy-duty intelligent power supplies time-tested to guarantee years of reliable, trouble-free performance.

  • Power Supply3 Phase (Balanced electrical load)
  • UV Power ControlStep-less 10% to 100% with Auto speed sync
  • Stand-by Power ModeMinimum 10% for safety, minimised heat and power saving
  • DiagnosticsBuilt-in advanced diagnostics with alarms for various parameters
  • ConstructionHeavy-duty construction to handle extreme working conditions performance to meet the customer's demanding production schedule.
  • EffiecencyNearly Fully solid state ensurig high efficency and minimised lossese useses advance software to further power saving.
  • UV Lamp ControlAdvanced IGBT technology allows very precise control of Various electrical parameters to control arc UV Lamps which allow to control lamps power from 10 to 100% effortlessly and save precious electricity, minimising Heat and making them safer to use
Intelligent electronic power supply units

Air Cube

Intelligent Air Flow & Ozone Extraction

The Air Cube encases blowers that extract harmful ozone gas away from the press floor. Butterfly valve-controlled air flow maintains optimum lamp operating temperatures for instant active conditions with zero wastage.

M Cure Air Cube

Chiller Unit

High-Efficiency Cooling Sourced from GWK or Equivalent Specially designed for UV and curing applications, guaranteeing minimal power consumption paired with effective heat removal.

M Cure chiller unit
Improved Parts Quality
Increase Productivity
Lower Operating Cost
Produce
eco-friendly

Water Distributor Precision Liquid Management

Manages and controls cooling liquid distribution for optimum system performance. Features live feedback and diagnostic monitoring to track the health of the cooling medium, preventing overheating during peak operations.

M Cure water distributor
Manage and control the cooling liquid for optimum performance
Monitoring and live feedback/diagnostics
Trouble-free performance
Safety First Architecture

Safety & Protection

Alpna takes safety very seriously and has a proven, unbeatable track record. The UV system is seamlessly integrated with the mother machine using an elaborate and well-thought-out interface. This ensures that all interlocks function smoothly and reliably, delivering zero failure performance.

  • Carefully Designed Interlocks: Ensures total operational safety.
  • Safety Switches: Installed on all protective covers.
  • Real-Time Monitoring: Continuous checking of critical press parameters.
  • Emergency Stop Switches: Strategically located at critical access points.
Safety and protection
Models

Configurations & Models

Plan your configuration: One ID + Two EOP on a five color press; Three ID + Three EOP on five, six and seven color presses with coater

🎯  Reduce turnarounds, slash downtime, and maximize print productivity with a field-proven retrofit UV solution for sheetfed presses.
