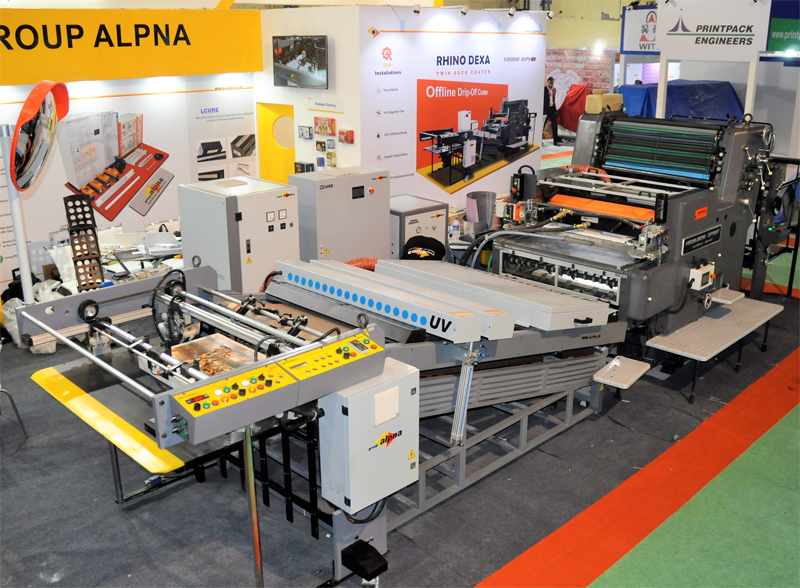

UV Dryer Series

For Attachment to Sheet-fed Presses

For Printing on

Met-PET, PVC, Lenticular, PP, PC
& many other difficult to print substrate

Product Highlights

  • Easy to operate
  • Longer Lamp Life
  • Auto UV hood raise for fire safety
  • EPS Power Pack optionally available
  • Lower Electricity Consumption upto 15%
  • Suction Hold Down for uniform Paper Travel
  • Designed using advanced design technology
  • Over 1000 plus installation in India and abroad
  • Auto Hibernation system for power saving in idle condition
  • High quality Transformers for minimised Energy loss
  • Longer consumable life due to carefully designed sub- systems
  • Well Designed Reflectors designed using cutting edge optical
  • designing for maximum UV exposer and minimised heat on to the substrate
  • High speed Stackers with air cushioning for Thin paper Stacking
  • Plug Socket connections for easy movement around the print shop
  • Adjustable Height for multiple use- low pile/ High pile offset presses
  • Heavy duty cast Iron Blower for maximum heat extraction and noise-free operation

C-CURE Reflector Technology

C-CURE Class-E Reflector assembly
  • High quality reflector engineered profile for max utilization of UV energy
  • UV LAMP
C-CURE Class-I Reflector assembly
  • High quality reflector engineered profile for max utilization of UV energy
  • UV LAMP
  • UV Glass Shields the Substrate from direct heat produced by the lamp and also increase lamp life.
C-CURE Class-II Reflector assembly
  • Water Cooled for efficient heat dissipation of absorbed IR
  • High quality reflector engineered profile for max utilization of UV energy
  • DI-Chroic coating for Cool UV
  • UV LAMP
  • UV Glass
Model AL20C6 AL25C6 AL30C6 AL35C6 AL40C6
Max Curing Width- 20" width 25" width 30" width 35" width 40" width
Suitable for- 15" X 20"
e.g- GTO
19" X 25"
e.g- SORK
20" X 29"
e.g- SORM
SM 74, etc
25" X 36"
e.g- SORD
28" X 40"
e.g- SORS
Lamp rating- 300 watts/inch & 400 watts/inch- up-to 3 Lamps
Conveyer Length Standard- 9', Optionally up-to 18 ft.
Application MET-PET Printing, UV Coatings, Aqueous Coating, etc...
Options Hot Air, Auto Sheet Stacker, Cold Air, etc...
UV Lampheads Standard- Class- E, Optional- Class- I, Class- II.
General CNC Construction for Durability and Maintenance free operation.

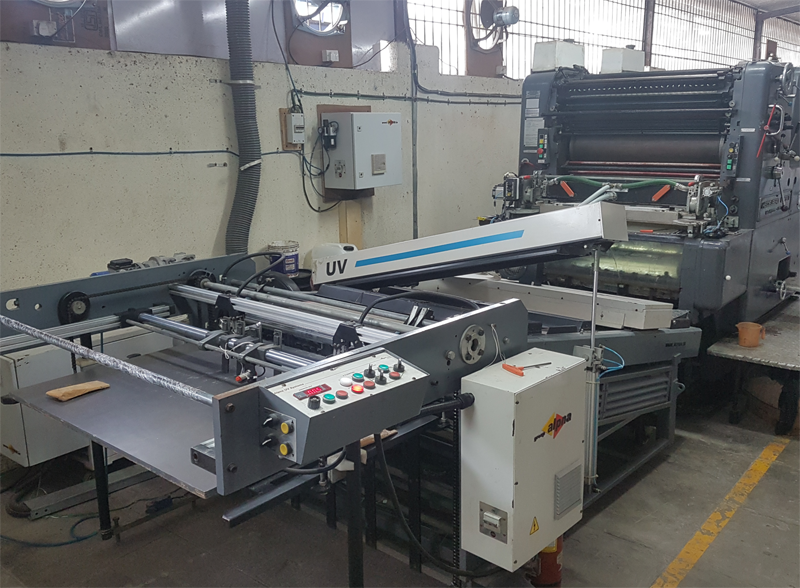

C-CURE Available as attachment for

and other leading offset press
  • Various size & Configuration available
  • Suction Hold-Down
  • AC Drive for variable speed control

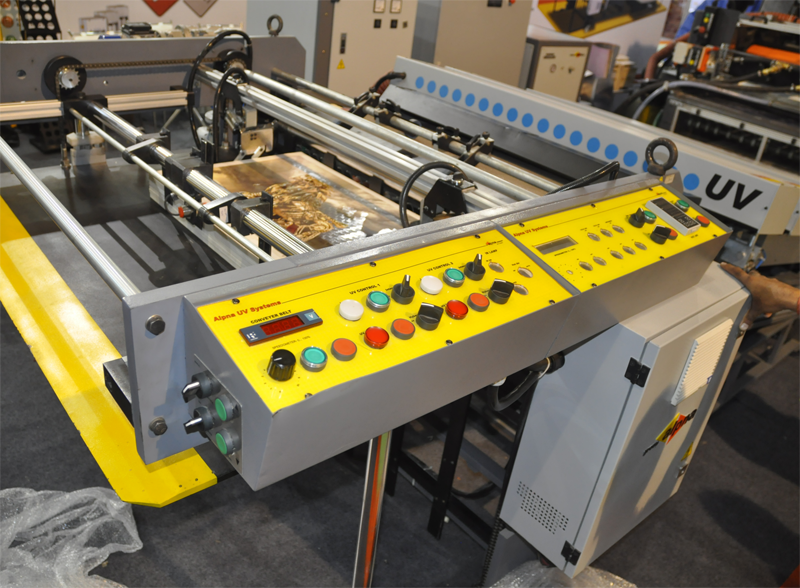

  • Built-in Control Panel

STALLION CXXTi Series

Specially Designed for Screen Cylinder Presses
and Screen Printing/Coating Lines
  • Cool UV Class- I
  • Cool UV Calss- II
  • After Cooling Zone

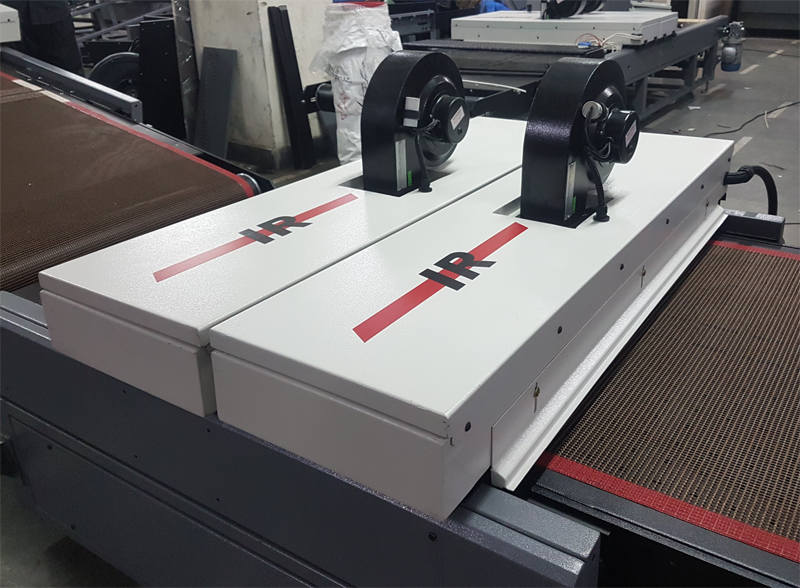

  • IR Modules
  • Hot Jet Air Modules
  • Wrinkling Module
  • Auto- Sheet Stacker
  • Various Conveyer Lengths Starting from 9ft
  • UV Meter
